HDMI to S-Video / AV Video Converter

HDMI to S-Video / AV Video Converter - HD to CVBS Adapter for Older TVs and S-Video Monitors

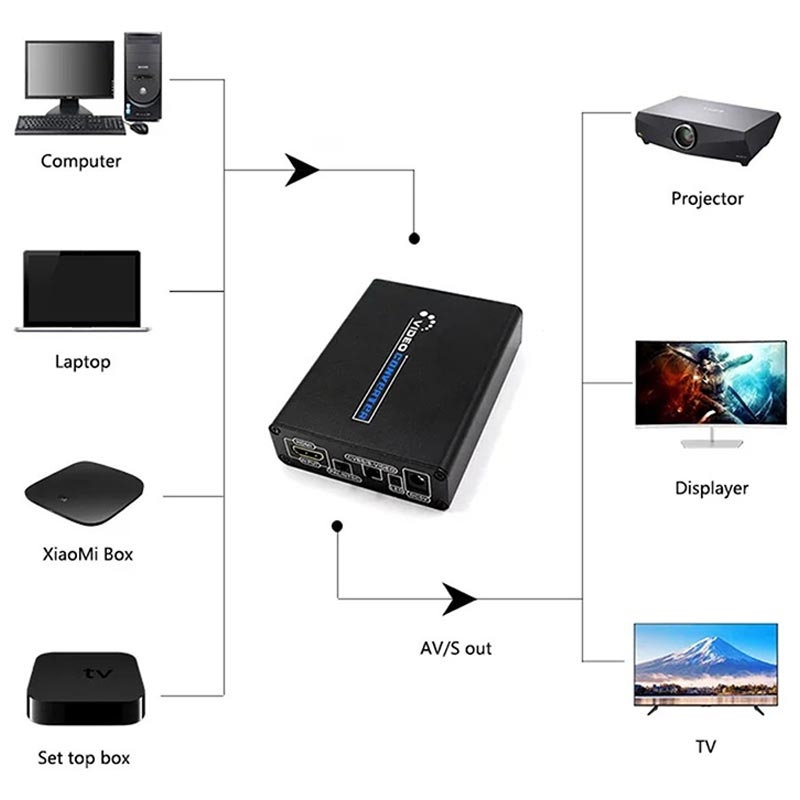

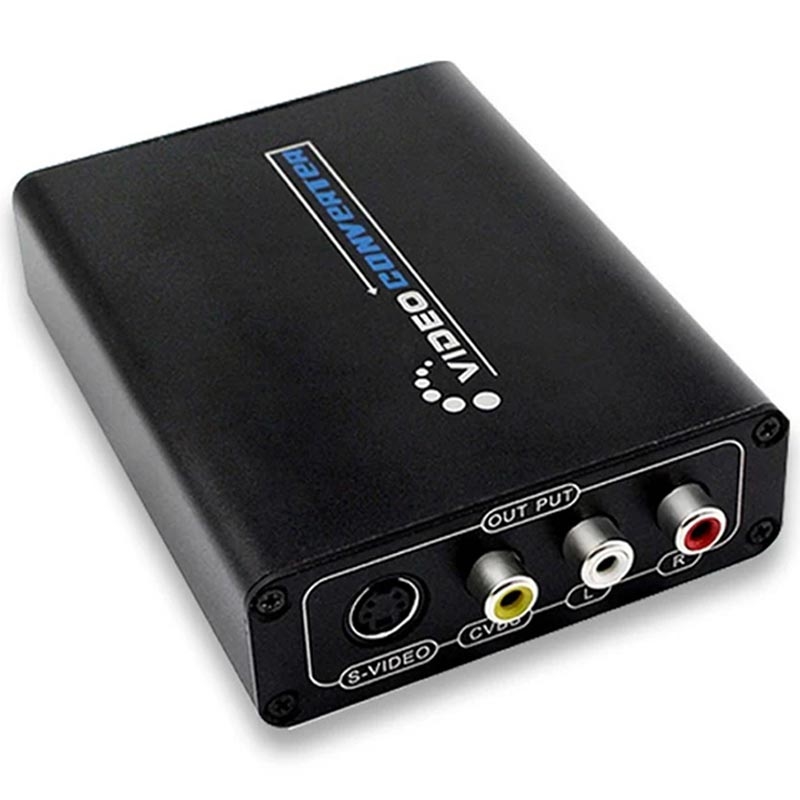

This HDMI to S-Video / AV converter allows you to connect modern HDMI sources-such as computers, laptops, media players, and game consoles-to older CRT TVs and S-Video monitors that use composite (CVBS) or S-Video inputs.

HD Signal Conversion to Standard Definition Output
The converter transforms HD digital signals into analog composite video (CVBS) or S-Video, enabling compatibility with legacy display equipment while maintaining stable signal output.

Wide Input Resolution Support
Supports a broad range of HDMI input formats, including 480P, 576P, 720P, 1080i, and 1080P at both 50Hz and 60Hz-offering flexibility with various source devices.

Dual Output Options: CVBS & S-Video

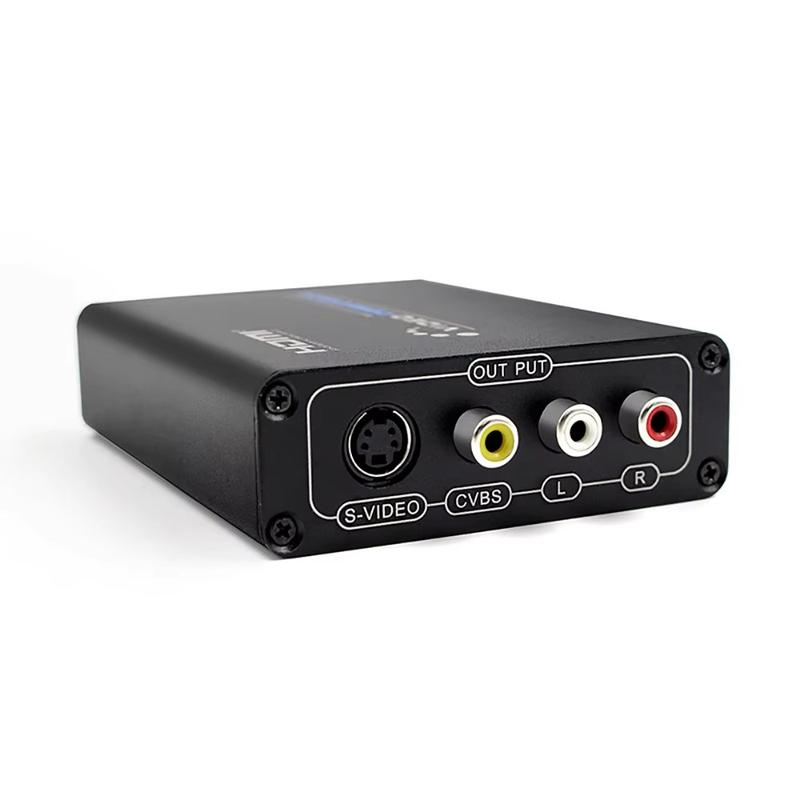

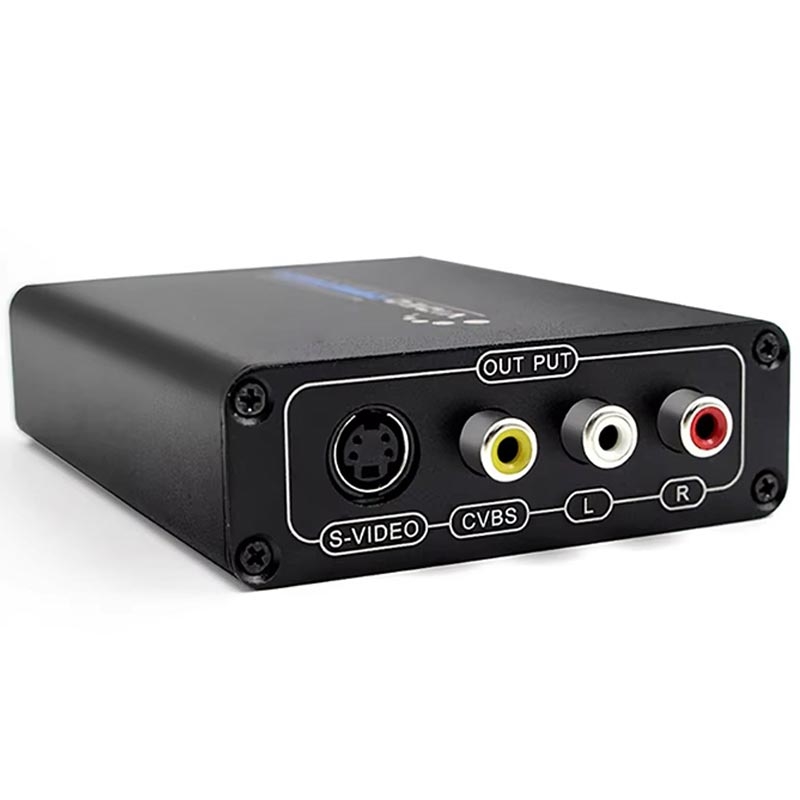

Equipped with both CVBS and S-Video outputs, allowing you to choose the best available connection for your display device.

PAL / NTSC Switchable Output
Easily switch between PAL and NTSC video systems, ensuring compatibility with regional TV standards worldwide.

Stable Performance in Various Conditions
Designed to operate reliably across a wide temperature range, making it suitable for home, office, educational, or industrial environments.

Specifications
- Input Signal: HDMI
- Output Signals: CVBS: 1.0Vpp, S-Video: Y 1.0Vpp / C 0.3Vpp
- Supported Input Formats: 480P (60Hz), 576P (50Hz), 720P (50Hz/60Hz), 1080i (50Hz/60Hz), 1080P (50Hz/60Hz)
- Output Video Systems: PAL / NTSC
- Output Impedance: 75 Ohms
- Power Supply: DC 5V
- Operating Temperature: -25 C to 75 C
- Operating Humidity: 10%-60%

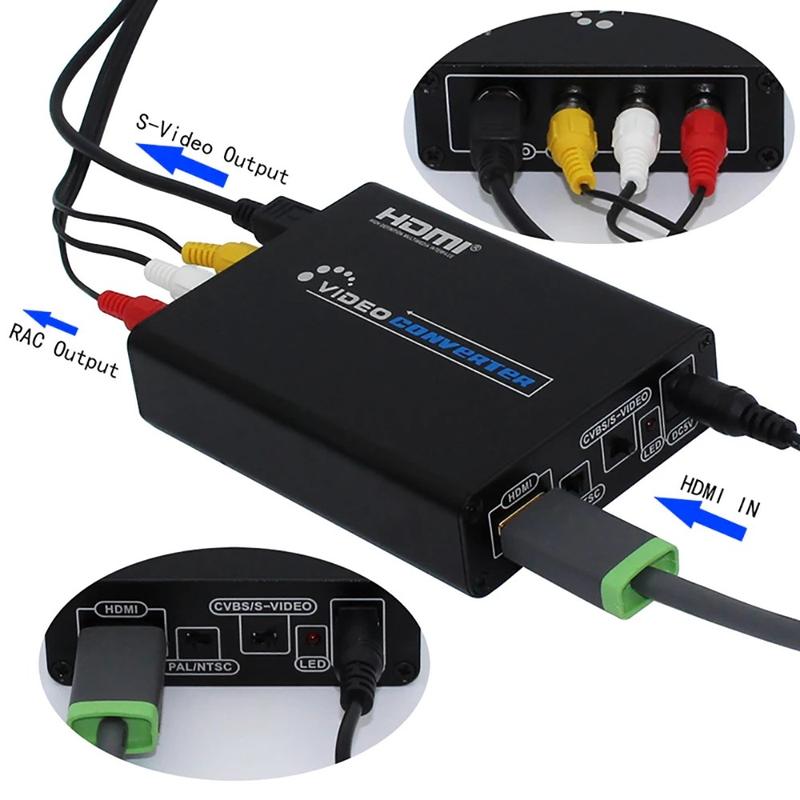

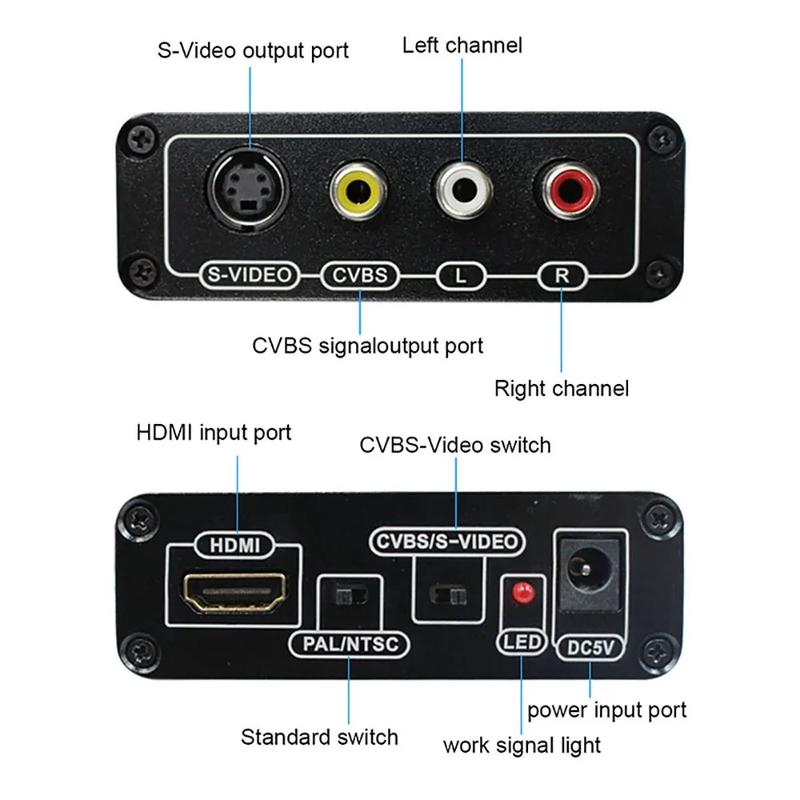

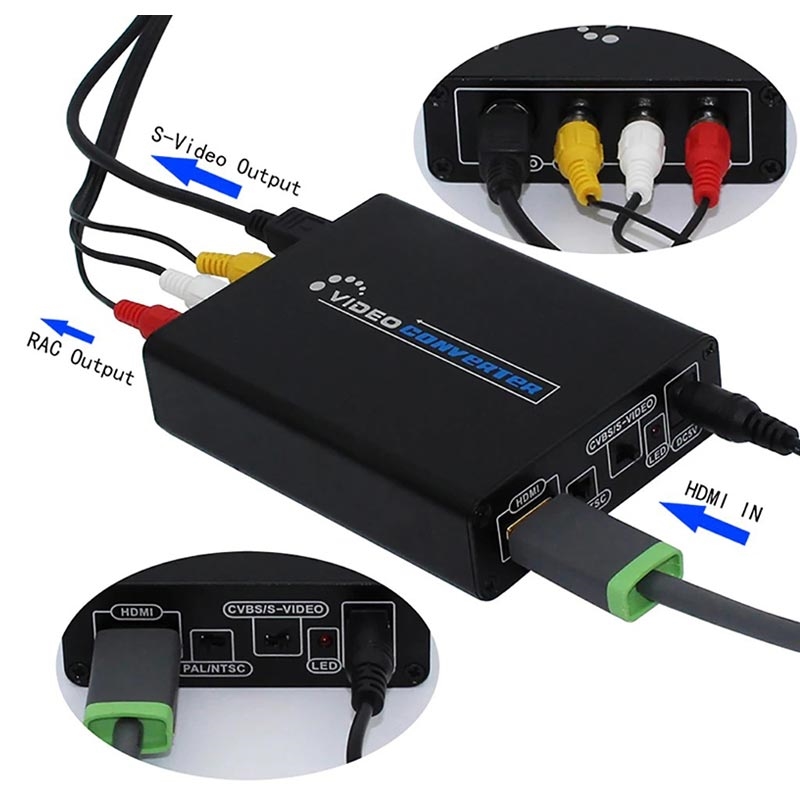

- Ports: HDMI input, S-Video output, CVBS output, stereo audio output

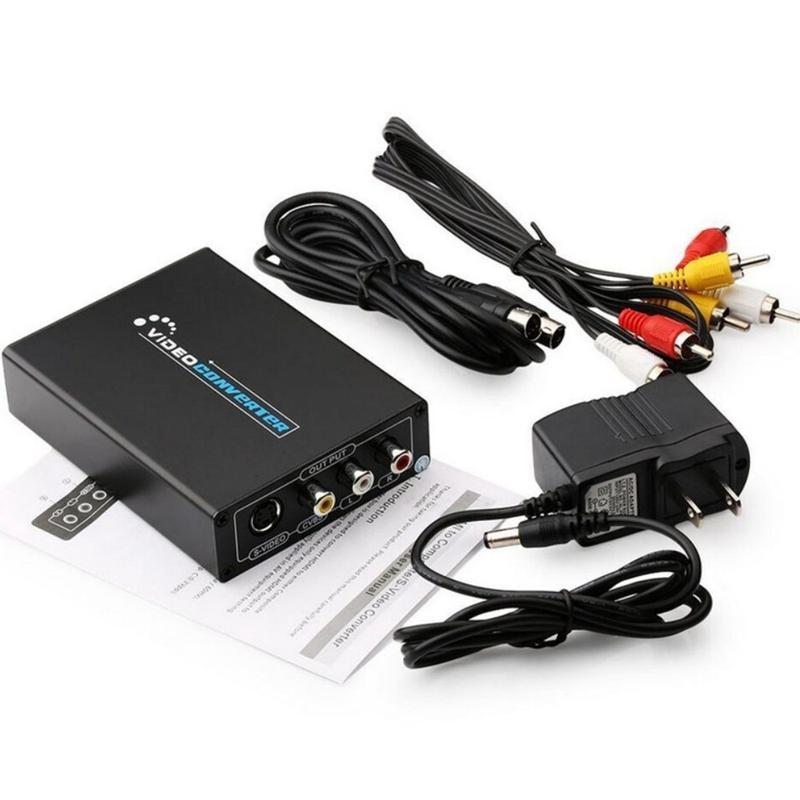

Package Includes
- 1 x HDMI to S-Video / AV Converter
- 1 x 5V Power Adapter
- 1 x AV Cable
- 1 x S-Video Cable
- 1 x English User Manual

Why It s a Great Choice
This HDMI to AV/S-Video converter is a practical solution for extending the life of older TVs and monitors, offering flexible outputs, wide format support, and reliable performance-perfect for retro setups, presentations, or legacy equipment integration.

Package: Euroblister
